Slurry pump Spare Parts are designed for use in the toughest and most abrasive applications, and having a wide range of wear parts available in stock means there will be minimal interruptions to your slurry and solids-laden fluid removal processes.
Slurry pumps are often used in mineral processing and wash plant environments, and suitable wear parts are critical to ensuring the longevity of your equipment.
As one of the leading global slurry pump manufacturers, Tobee is uniquely positioned to produce quality slurry pump spare parts which deliver an exceptional lifespan, reducing the overall cost of ownership. This has been recognised by a growing number of OEMs who now specify our Tobee pumps, giving reduced downtime benefits to a rapidly growing number of end users.
Usually the slurry pump spare parts are made of High chrome alloy, rubber, elastomer, polyurethane, ceramic and some other customized materials. But High chrome alloy and elastomer are now the main materials for the slurry pumps. Recent years Tobee is trying to make slurry pump spare parts by ceramics and many data come from labs and mills show that the ceramic slurry pump spare parts can work for a longer time than high chrome alloy.
For the chrome alloy parts, the standard is High chrome Alloy(27% Cr), it can be used from PH 5 to 12, and its hardness can be to HRC65, which is a very good choice for slurry control and transport. But in some conditions, the PH may lower than 5, then we try to use A49, it can lower to PH4, mostly used in FGD processing, Tobee offers the full chrome alloy parts including A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 etc.
For the elastomer parts, It is widely used in fine slurry conditions and lower PH to 2. There are also many rubbers for different conditions, Tobee offers the full rubber parts including R08, R24, R26, R33, R38, R55, R66, S01, S10, S12, S21, S31, S42, S44, S50 etc.
For the Polyurethane parts, It becomes popular in some conditions. It is good at corrosion and wear conditions. Tobee offers the full Polyurethane parts including U01, U38 etc.
For the Ceramic parts, It is perfect to replace elastomers and polyurethane in some condition. High Hardness and great corrosion make it even can replace the metal impeller in some conditions.
The most important things for stopping ceramic slurry pump to replace other ones are the price and friability. But Tobee have solved these problems, that is to say Tobee have made it success to manufacturing ceramic slurry pump parts that can stand impact by particles in the fluid media and the slurry pump is not such expensive.
The Slurry Pump Spare Parts Include:
Basic Part Number Description Basic Part Number Description
001 Adjusting Screw 080 Stepped Washer
003 Base 081 Keeper Plate
004 Bearing Housing 083 Throatbush
005 Bearing Assembly 085 Throatbush Cotter
008 Bearing Sleeve 089 Bearing Seal
009 Bearing 090 Shaft Seal
011 Clamp Washer 092 Sump Pump Casing
012 Clamp Bolt 102 Sump Pump Column
013 Cover Plate 108 Piston Ring
015 Cover Plate Bolt 109 Shaft Sleeve O-Ring
017 Cover Plate Liner 110 Volute Liner
018 Cover Plate Liner – Throatbush
111 Packing Ring
019 Sump Pump Mounting Plate 112 Throatbush
021 Impeller – Two Vanes Open 114 Impeller – Six Vanes Open

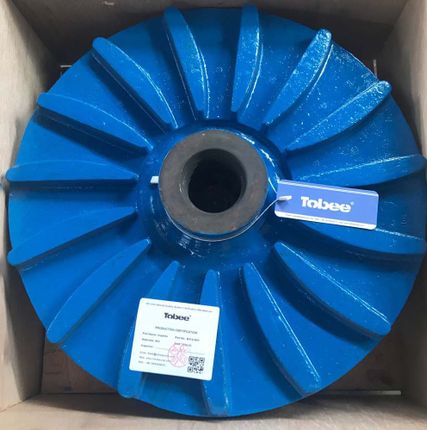

023 Cover Plate Liner Stud 116 Sump Pump Strainer
024 End Cover 117 Shaft Spacer
025 End Cover Shim 118 Lantern Restrictor
026 Frame Plate Liner Stud 122 Seal Ring
027 End Cover Set Screw 124 Volute Cover Seal
028 Expeller 125 Volute Frame Seal
029 Expeller Ring 126 Gland Clamp Bolt
032 Frame Plate 127 Impeller – Five Vanes Open
034 Frame Plate Bolt 130 Flange
036 Frame Plate Liner 131 Gravel Pump Bowl
039 Frame Plate Liner Stud 132 Discharge Joint Ring
040 Frame Plate Liner Insert Bolt 134 Clamp Ring
041 Frame Plate Liner Insert 135 Clamp Ring
043 Frame Plate Liner 137 Impeller – Three Vanes Closed
044 Gland 138 Grease Cup Adaptor
045 Gland Bolt 143 Volute Seal Holder
046 Grease Retainer 144 Volute Seal Holder Stud
049 Impeller – Eight Vanes Closed 145 Impeller – Four Vanes Closed
051 Impeller – Two Vanes Open 147 Impeller – Five Vanes Closed
052 Impeller – Three Vanes Open 154 Sump Pump Discharge Pipe
053 Impeller – Eight Vanes Open 179 Shaft Sleeve Spacer
056 Impeller – Four Vanes Open 184 Sump Pump Flinger
058 Impeller – Six Vanes Closed 190 Suction Cover
060 Intake Joint Ring 191 Impeller – Eight Vanes Open
061 Labyrinth Locknut 204 Discharge Joint
062 Labyrinth 206 Sump Pump Impeller
063 Lantern Ring 217 Impeller O-Ring
064 Impeller Sealing O-Ring 221 Flange
066 Motor Support Bolt 239 Release Collar
067 Neck Ring 241 Lip Seal Gland
070 Shaft Key 290 Sump Pump Spacer
073 Shaft 292 Door Clamp Plate
075 Shaft Sleeve 322 Sump Pump Suction Pipe
076 Shaft Sleeve – Long Type 360 Mechanical Seal Adaptor
078 Stuffing Box 424 Mechanical Seal Shaft sleeve
079 Expeller Ring Stud
Note:
* Tobee® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Tobee® slurry pump parts are only interchangeable with Warman® pump parts.
* This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
